COORDINATE MEASURING SYSTEMS

Manufacturing critical components and verifying that specifications are met is a daily routine at Fox Valley Tool & Die. Maintaining management's philosophy of continually updating our equipment transcends into our quality area as well, allowing us to accurately inspect the final product with assurances that even the most demanding specifications are being met.

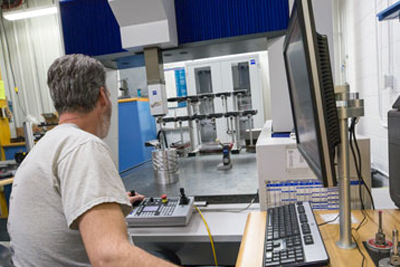

More sophisticated requirements necessitate the use of any of our seven Coordinate Measuring Machines (CMM). The CMM inspection envelope is vast, and can accommodate components up to 48" x 90" in size. The CMM's are equipped with extensive software programs that import solid models and validate profiles, scan features for reverse engineering and produce detailed inspection reports for you.

Fox Valley Tool & Die has assembled an extensive quality manual defining inspection protocols, (in-process, final and gage calibration), that assures your stringent quality requirements are continually being met.
